PE Coated Flange/Metal Flange

Name: PE Coated Flange/Metal Flange
Brand: JAIN PIPE TRADERS PRIVATE LIMITED
Price: 250 -
Availability: InStock

250 - 5500 INR

Get a Price/Quote

Product Details:

Flexibility Rigid
Coating Type Fusion-Bonded PE Coating
Tensile Strength 400 620 MPa
Thread Type N/A (Normally Flanged, Can Be Threaded if required)
Sealing Type Gasket Seal
Connection Type Slip-On, Weld Neck, Blind, Lap Joint, Socket Weld
Temperature Range -20C to +80C
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

PE Coated Flange/Metal Flange Price And Quantity

Price 250 - 5500 INR
Minimum Order Quantity 1 Number

Production Technique Forged/Machined
Corrosion Resistance Excellent due to PE coating
Lead Time 2 4 Weeks
Weight Varies as per size and thickness
Flange Face Type Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ)
Customization Available as per client specification
Installation Method Bolt tightening with gasket sealing
Packing Wooden Case/Pallet Packing

PE Coated Flange/Metal Flange Product Specifications

Shape Round
Surface Treatment PE (Polyethylene) Coated
Bend Radius As per flange dimensions
Thickness 10 mm 40 mm
Tolerance 0.1 mm
Yield Strength 250 MPa min
Outer Diameter Up to 1200 mm
Rated Pressure PN6 PN40, Class 150 600
Section Shape Circular
Color Black
Length Standard as per flange type
Standard ANSI, DIN, JIS, BS, EN, GB
Tensile Strength 400 620 MPa
Product Type PE Coated Flange/Metal Flange
Material Carbon Steel/Stainless Steel
Flexibility Rigid
Coating Type Fusion-Bonded PE Coating
Material Grade SS304, SS316, A105, F304, F316
Usage Pipe Joining, Corrosion Resistance Piping
Connection Welded/Flanged/Bolted
Diameter 1/2 inch 48 inch
Thread Type N/A (Normally Flanged, Can Be Threaded if required)
Sealing Type Gasket Seal
Application Oil, Gas, Water Pipeline, Chemical Industry, Construction
Connection Type Slip-On, Weld Neck, Blind, Lap Joint, Socket Weld
Temperature Range -20C to +80C

Production Technique Forged/Machined
Corrosion Resistance Excellent due to PE coating
Lead Time 2 4 Weeks
Weight Varies as per size and thickness
Flange Face Type Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ)
Customization Available as per client specification
Installation Method Bolt tightening with gasket sealing
Packing Wooden Case/Pallet Packing

PE Coated Flange/Metal Flange Trade Information

Supply Ability 100 Number Per Week
Delivery Time 1 Days

Product Description

PE Coated Flange/Metal Flange

CODE	SIZE
BFFL032032	32mm
BFFL050050	50mm
BFFL063063	63mm
BFFL075075	75mm
BFFL090090	90mm
BFFL110110	110mm
BFFL125125	125mm

BFFL140140	140mm
BFFL160160	160mm
BFFL180180	180mm
BFFL200200	200mm
BFFL225225	225mm
BFFL250250	250mm
BFFL280280	280mm

BFFL315315	315mm
BFFL355355	355mm
BFFL400400	400mm
BFFL450450	450mm
BFFL500500	500mm
BFFL560560	560mm
BFFL630630	630mm

Superior Corrosion Resistance for Extended Service Life

The fusion-bonded PE coating applied to these flanges acts as a resilient barrier against harsh chemicals, moisture, and aggressive agents. This enhances performance and reduces maintenance needs even in corrosive environments, making them ideal for oil, gas, water, and chemical pipelines.

Versatile Applications Across Industries

Suitable for a wide array of industries, these flanges are designed for use in pipeline joining, construction, and corrosion-resistant piping systems. They accommodate different flange face types and connection methods, supporting diverse installation requirements across mechanical and civil sectors.

Customized Solutions to Meet Your Specifications

Each flange can be tailored based on client needs, including material selection (carbon steel, SS304, SS316, etc.), outer diameter, thickness, and connection type. Advanced forging and machining ensure precise tolerances (0.1 mm), guaranteeing compatibility and reliability for your project.

FAQs of PE Coated Flange/Metal Flange:

Q: How are PE coated metal flanges installed?

A: These flanges are typically installed by aligning with the pipe, inserting a suitable gasket, and tightening with bolts to achieve a secure, leak-proof seal. The installation process supports various connection types including slip-on, weld neck, blind, lap joint, and socket weld.

Q: What benefits does the PE coating provide for these flanges?

A: The fusion-bonded polyethylene coating offers excellent corrosion resistance, extending the lifespan of the flange even in chemically aggressive or moist environments. This minimizes the need for frequent maintenance or replacement compared to non-coated alternatives.

Q: When should I use a raised face, flat face, or ring-type joint flange?

A: The choice depends on the application and pressure requirements. Raised face (RF) flanges are commonly used for higher pressure ratings, flat face (FF) for lower-pressure systems, and ring-type joint (RTJ) when enhanced sealing is critical, especially in high-pressure or high-temperature scenarios.

Q: Where are these PE coated flanges commonly used?

A: These flanges are widely used in oil and gas pipelines, water distribution systems, chemical process plants, and construction projects where corrosion resistance and reliable joint integrity are essential.

Q: What customization options are available for these flanges?

A: Customizations include selection of material grade (such as SS304, SS316, A105, etc.), flange size, thickness (10 mm 40 mm), outer diameter (up to 1200 mm), and specific connection types or standards as per client requirements.

Q: What is the typical production and delivery lead time?

A: The standard lead time for production and delivery ranges from 2 to 4 weeks, depending on the complexity and quantity of the order. Urgent deliveries can often be accommodated upon request.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Electro Fusion Fittings' category

Clamp Saddle Price : 128 - 850 INR Minimum Order Quantity : 1 Surface Treatment : Other, Smooth Moulded Finish Shape : Other, Round Saddle with Flange Color : Black (with Blue Cap) Section Shape : Other, Cylindrical Material : Other , HighDensity Polyethylene (HDPE) Standard : Other, ISO 4427 / DIN 8074 Product Type : Other, Clamp Saddle Tolerance : 2 mm Thickness : 3 8 mm (Depending on Size) Yield Strength : 22 MPa Length : Depends on Pipe Size Rated Pressure : PN 16 (16 Bar) Outer Diameter : Available for 32 mm to 315 mm Pipes Flexibility : Rigid Material Grade : PE100 Usage : Branch Connection on Water Supply Pipes Connection : Other, Mechanical Fastening (Bolted) Tensile Strength : 23 MPa Sealing Type : EPDM Rubber Gasket Application : other, Irrigation, Water Distribution, Industrial Fluid Handling Connection Type : Bolted Clamp Temperature Range : 10C to 45C Diameter : Fit for 32 mm to 315 mm OD Pipes Coating Type : Uncoated (Raw HDPE)

Send Inquiry

Butt Fusion Tee Price : 50 -2500 INR Minimum Order Quantity : 1 Surface Treatment : Other, Smooth, Noncoated Shape : Other, Tee Color : Black or Blue Section Shape : Round Material : Other , High Density Polyethylene (HDPE) Standard : Other, ISO 4427 / DIN 8074 / EN 12201 Product Type : Other, Butt Fusion Tee Tolerance : 0.1 mm Thickness : 4 mm to 50 mm (varies by size) Yield Strength : 18 MPa Length : Customizable Rated Pressure : PN6, PN10, PN16 Outer Diameter : 20 mm to 630 mm Flexibility : Moderate Material Grade : PE100 / PE80 Usage : Fluid Transfer, Water Supply, Gas Distribution Connection : Other, Butt Fusion Joint Tensile Strength : 22 MPa Sealing Type : Fusion Welded Application : other, Plumbing, Irrigation, Industrial Piping Connection Type : Butt Fusion Welding Temperature Range : 40C to +80C Diameter : 20 mm to 630 mm Bend Radius : 20 x Outside Diameter

Send Inquiry

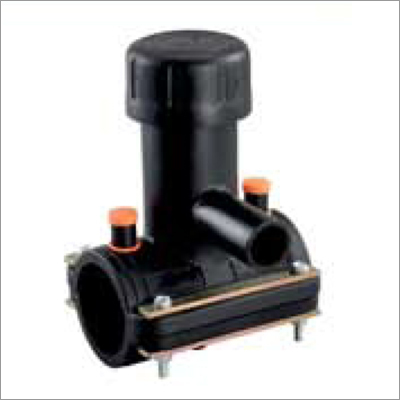

Electro Fusion Tapping Tee Minimum Order Quantity : 1 Surface Treatment : Other, Smooth finish Shape : Other, Tee Color : Black Section Shape : Round Material : Other , HighDensity Polyethylene (HDPE) Standard : Other, ISO 4427 / IS 14333 Product Type : Other, Electro Fusion Tapping Tee Tolerance : 0.5 mm Thickness : As per standard (varies with size) Yield Strength : 19 MPa Length : Custom as per specification Rated Pressure : PN 16 (up to 16 Bar) Outer Diameter : 20 mm to 315 mm (Available range) Flexibility : High flexibility compared to metal fittings Material Grade : PE 100 Usage : Water and Gas Distribution Connection : Other, Electrofusion Tensile Strength : 22 MPa Sealing Type : Fusion welded, leakproof Application : other, Pipeline Tapping, Branching Connections Connection Type : Electrofusion Welded Temperature Range : 10C to 45C Diameter : As per specified size Bend Radius : Minimum 10x pipe diameter Coating Type : No external coating
